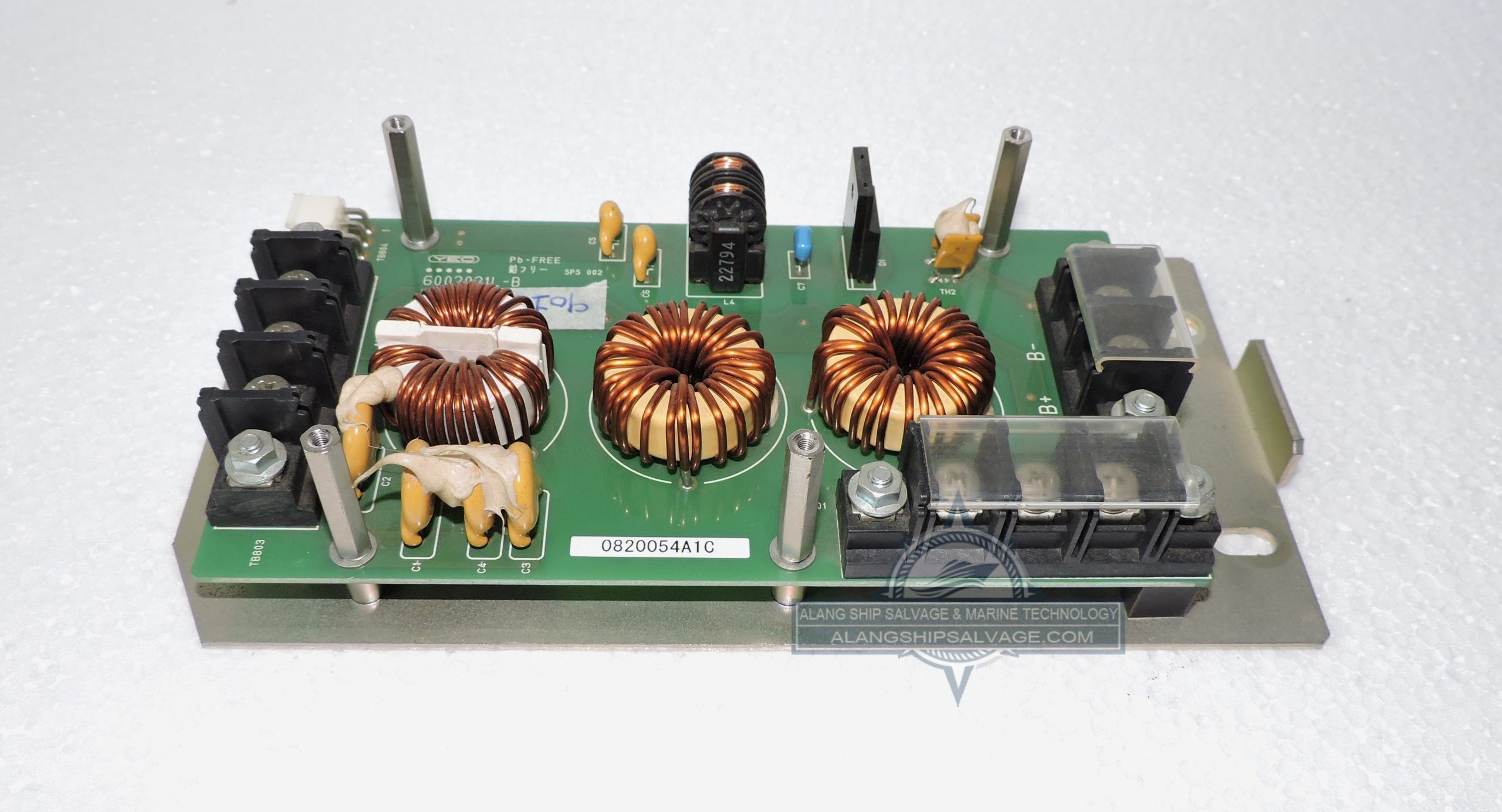

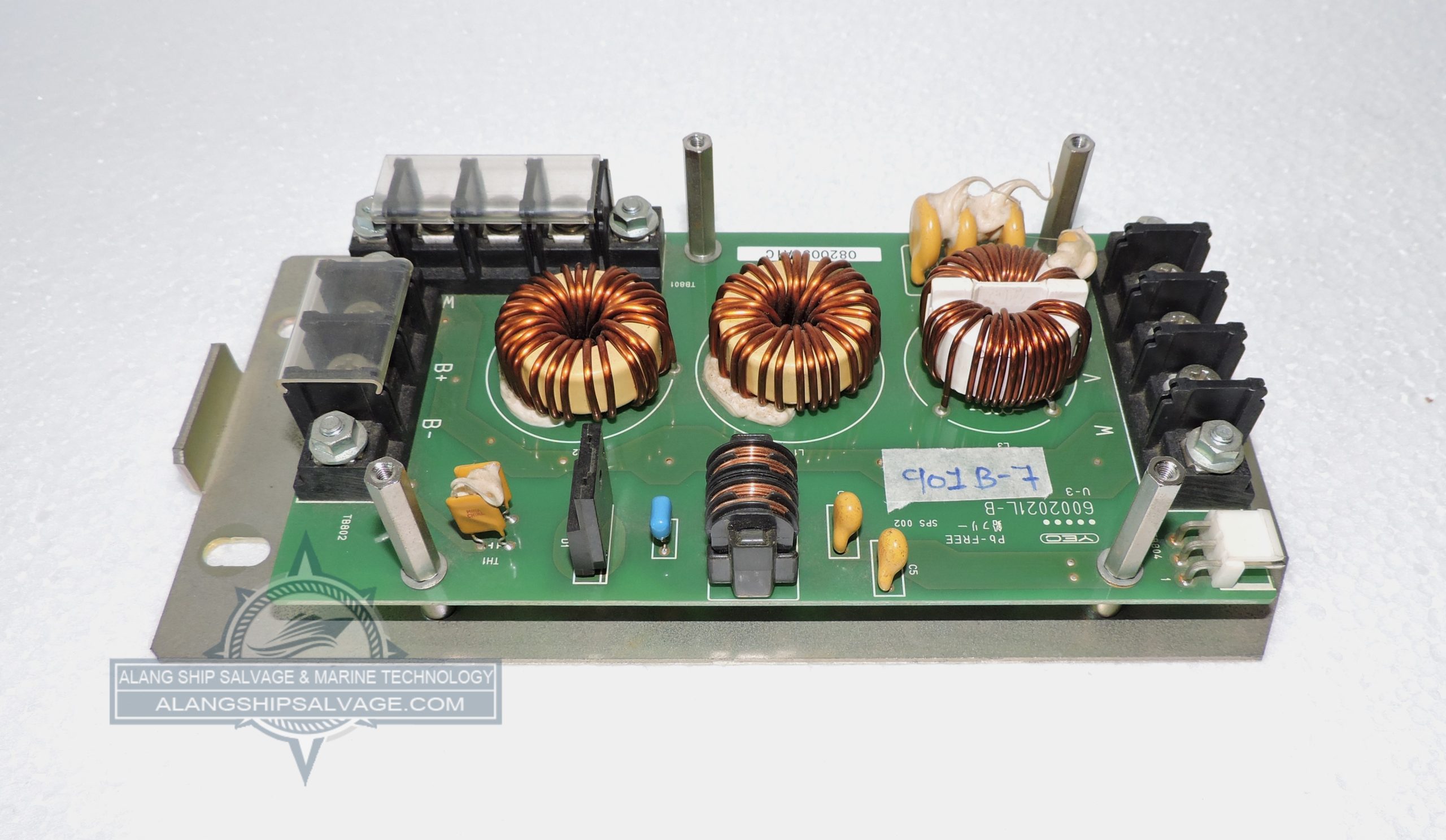

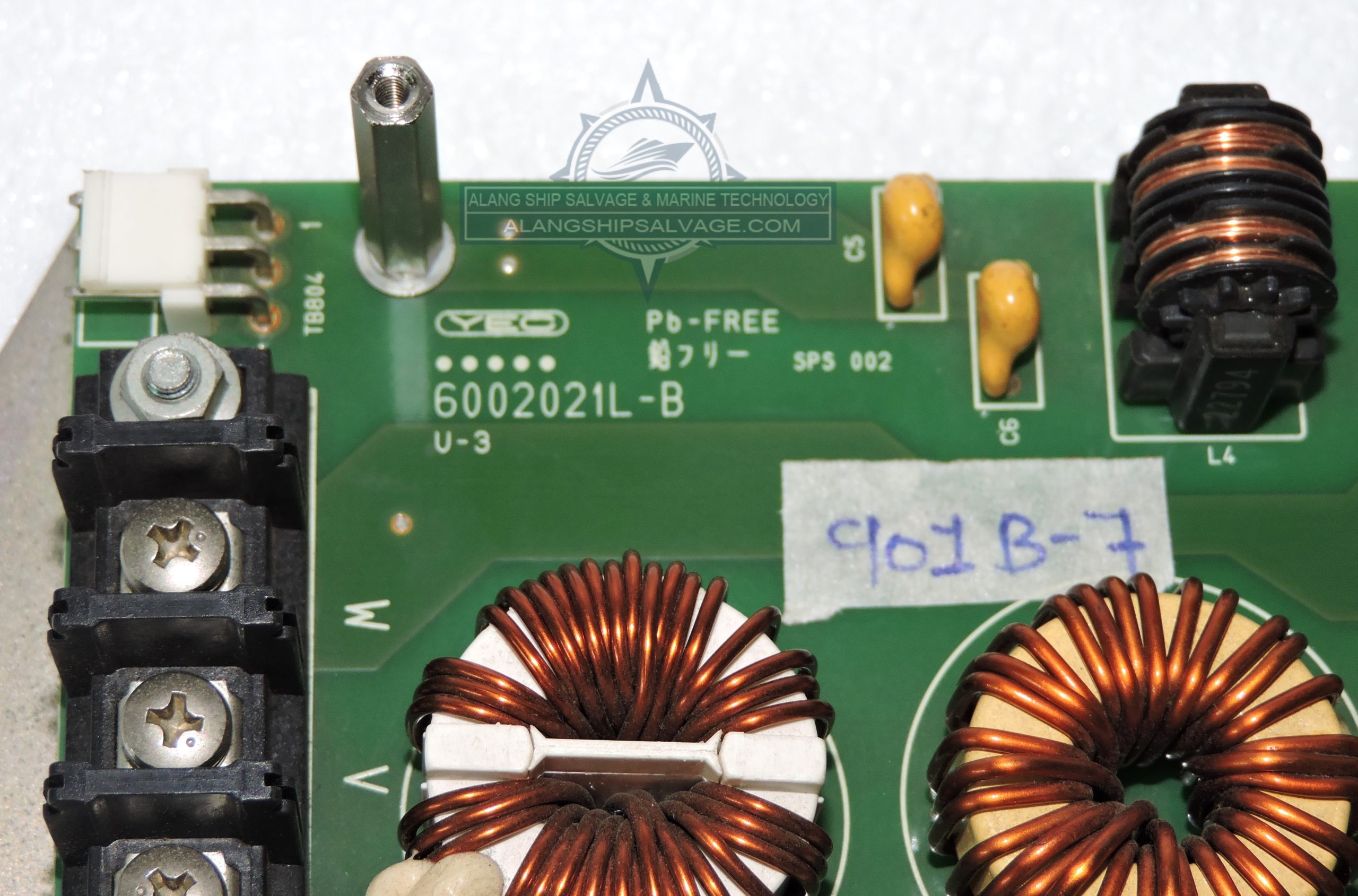

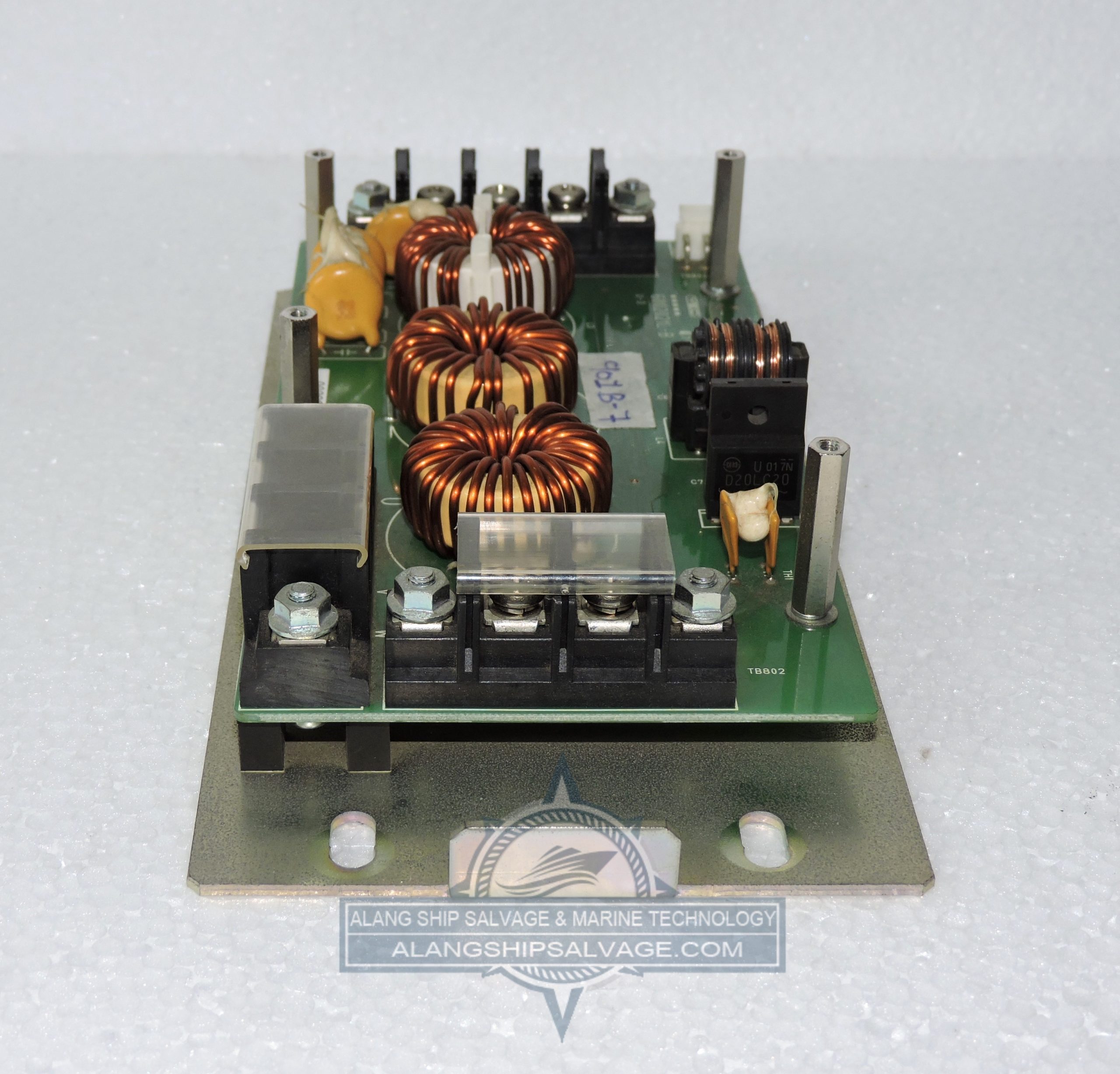

PRODUCT NAME : JRC 901B POWER FILTER CIRCUIT BOARD TYPE NO CBD-1832 901B-7
COMPANY NAME : JRC
MODEL NUMBER : CBD-1832 901B-7

PRODUCT DESCRIPTION : The JRC 901B Power Filter Circuit Board, identified by type number CBD-1832 901B-7, is an integral component of the JRC 901B ECDIS (Electronic Chart Display and Information System). The primary function of the Power Filter Circuit Board is to ensure that the power supplied to the ECDIS system is clean and stable. It filters out electrical noise and prevents voltage spikes that could potentially disrupt or damage sensitive electronic components.

Provides protection for the ECDIS system by regulating the power input, which helps in maintaining the reliable operation of the navigation equipment. Equipped with components such as capacitors, inductors, and sometimes varistors to filter out high-frequency noise and smooth out fluctuations in the power supply. May include voltage regulators to ensure that the ECDIS receives a steady and correct voltage level, protecting against variations in the power source. Designed to withstand the electrical demands and environmental conditions typical in maritime applications, including resistance to moisture and vibration.
