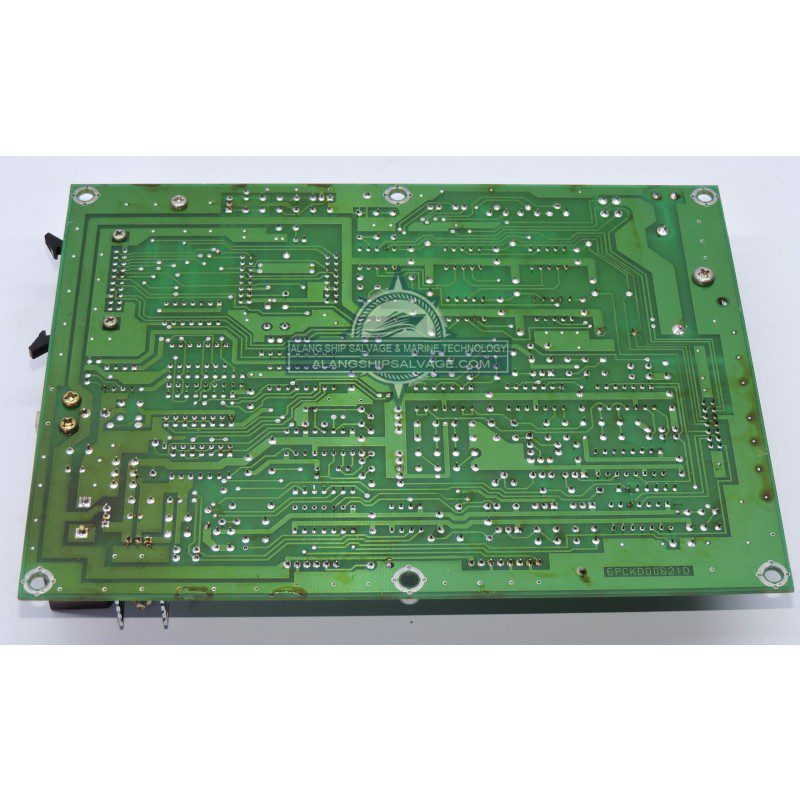

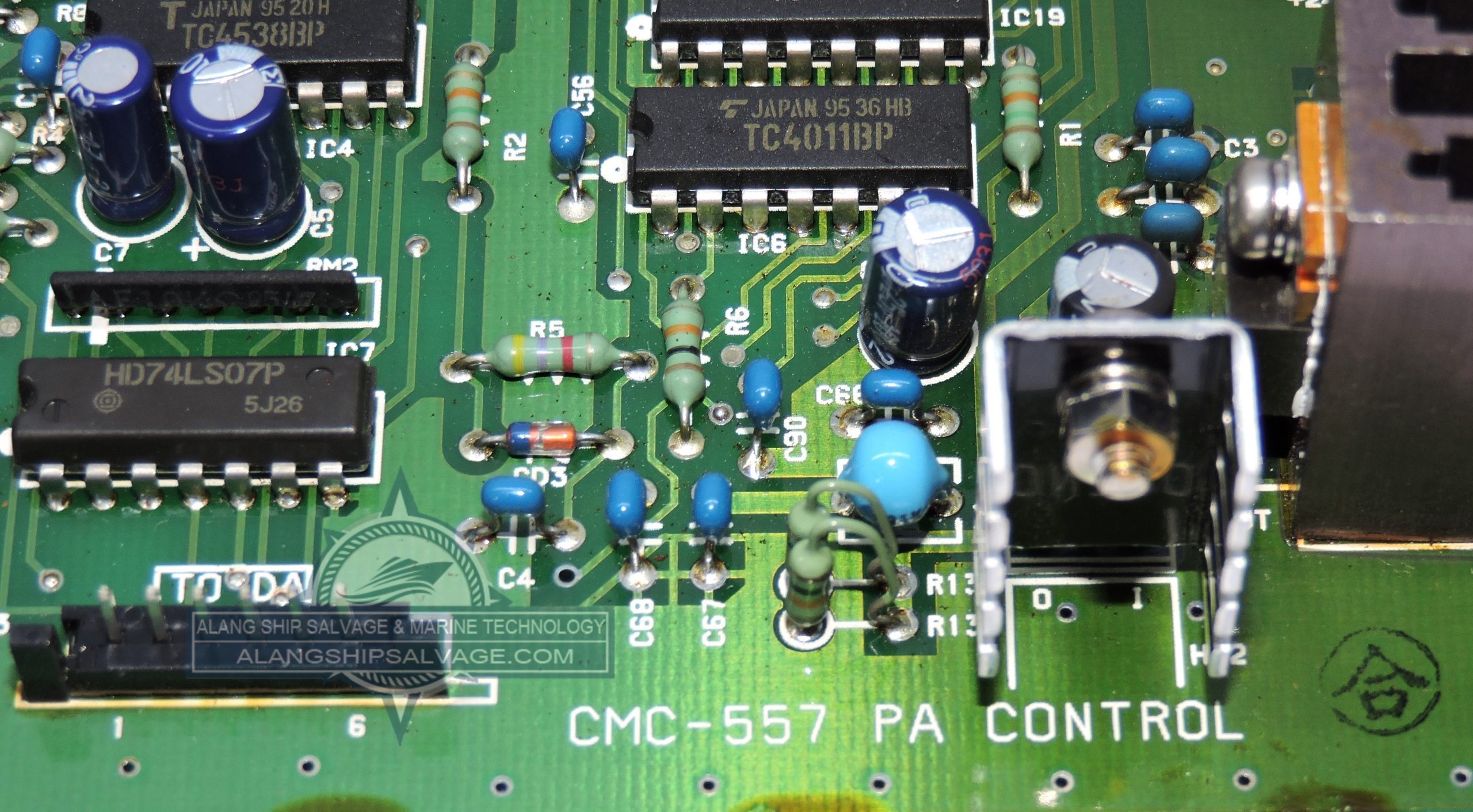

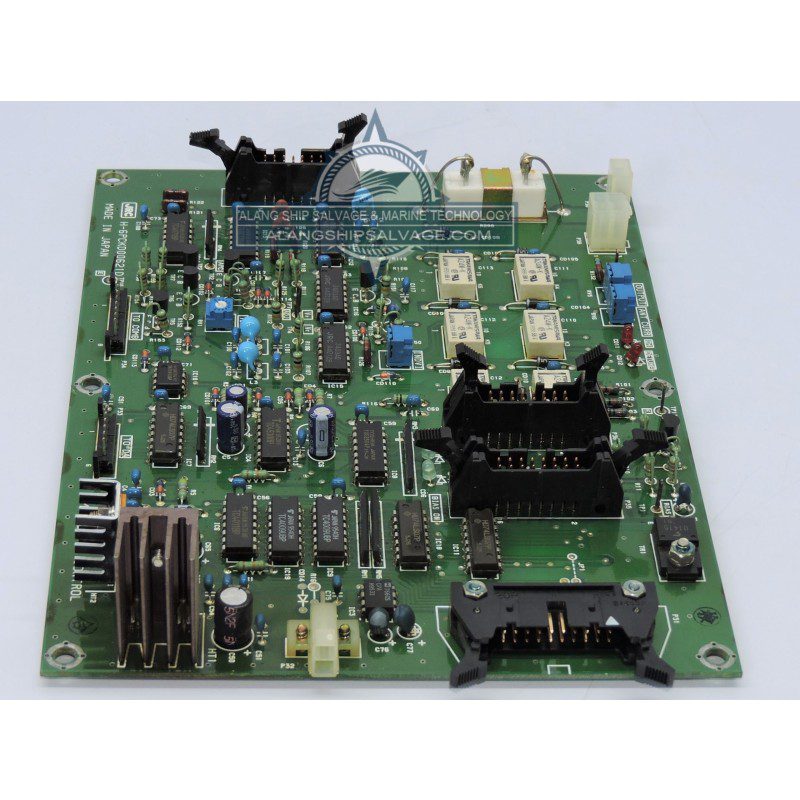

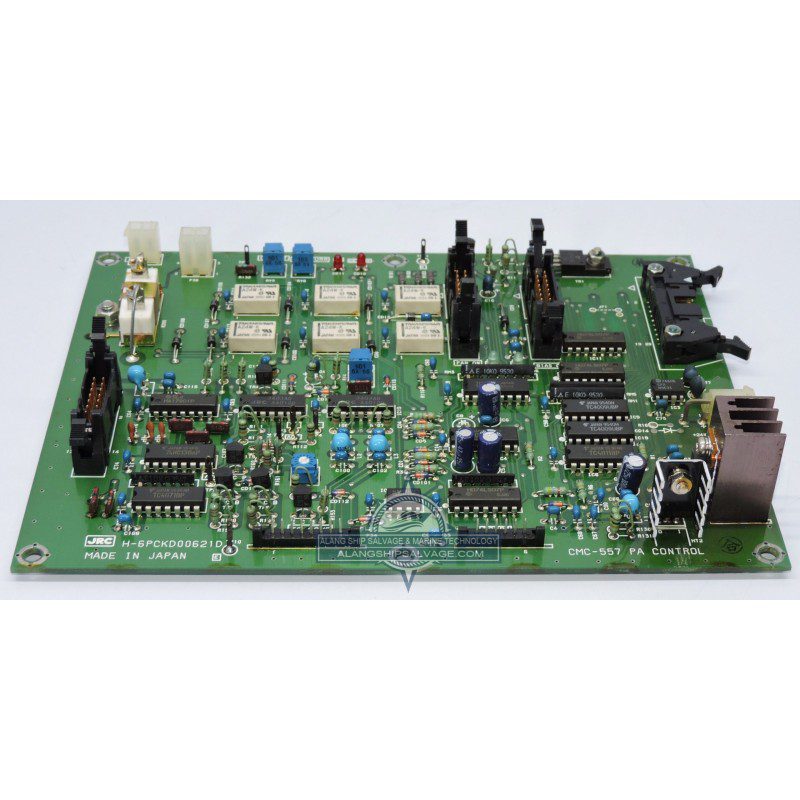

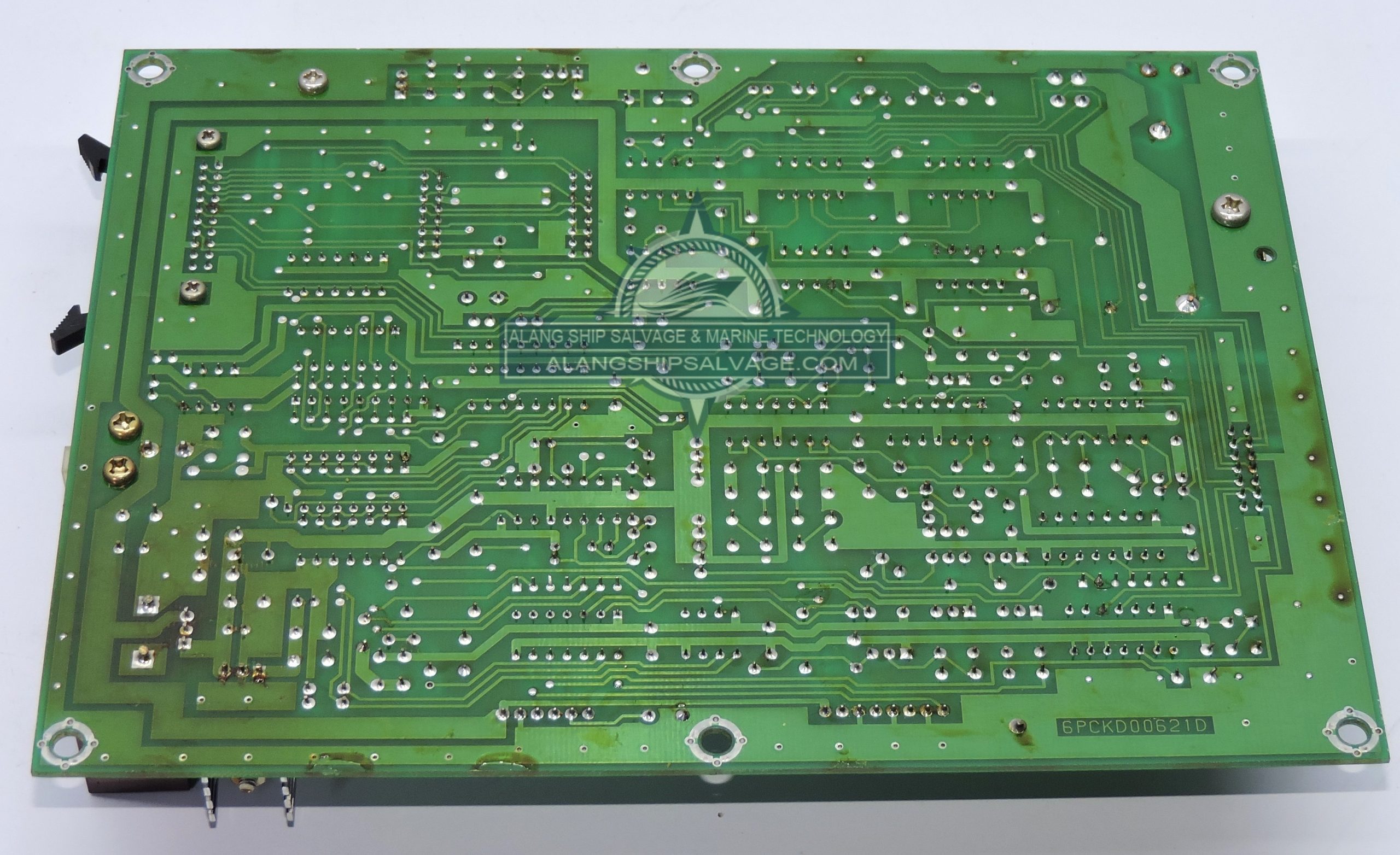

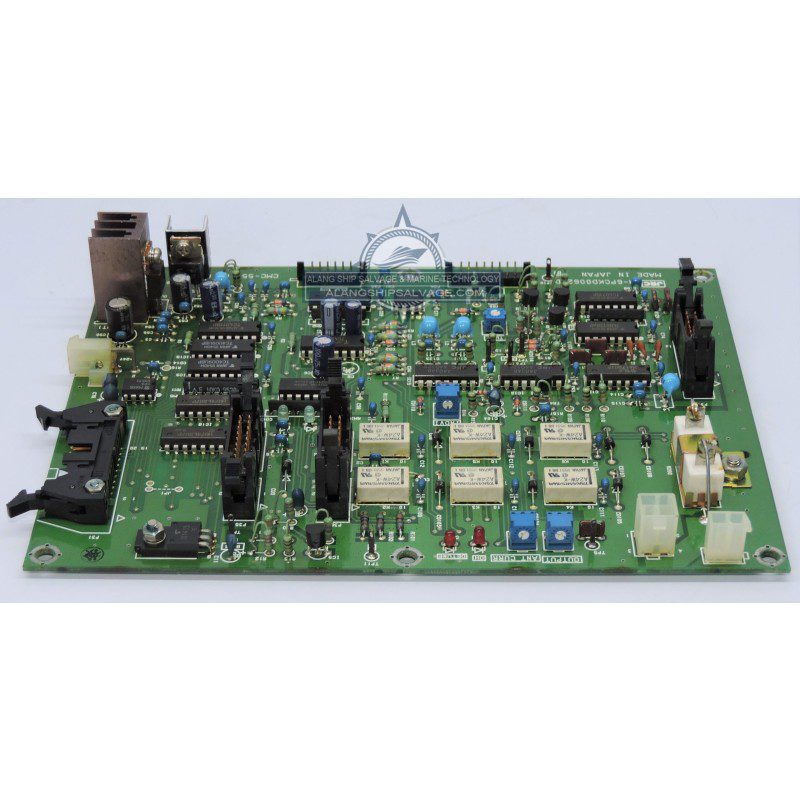

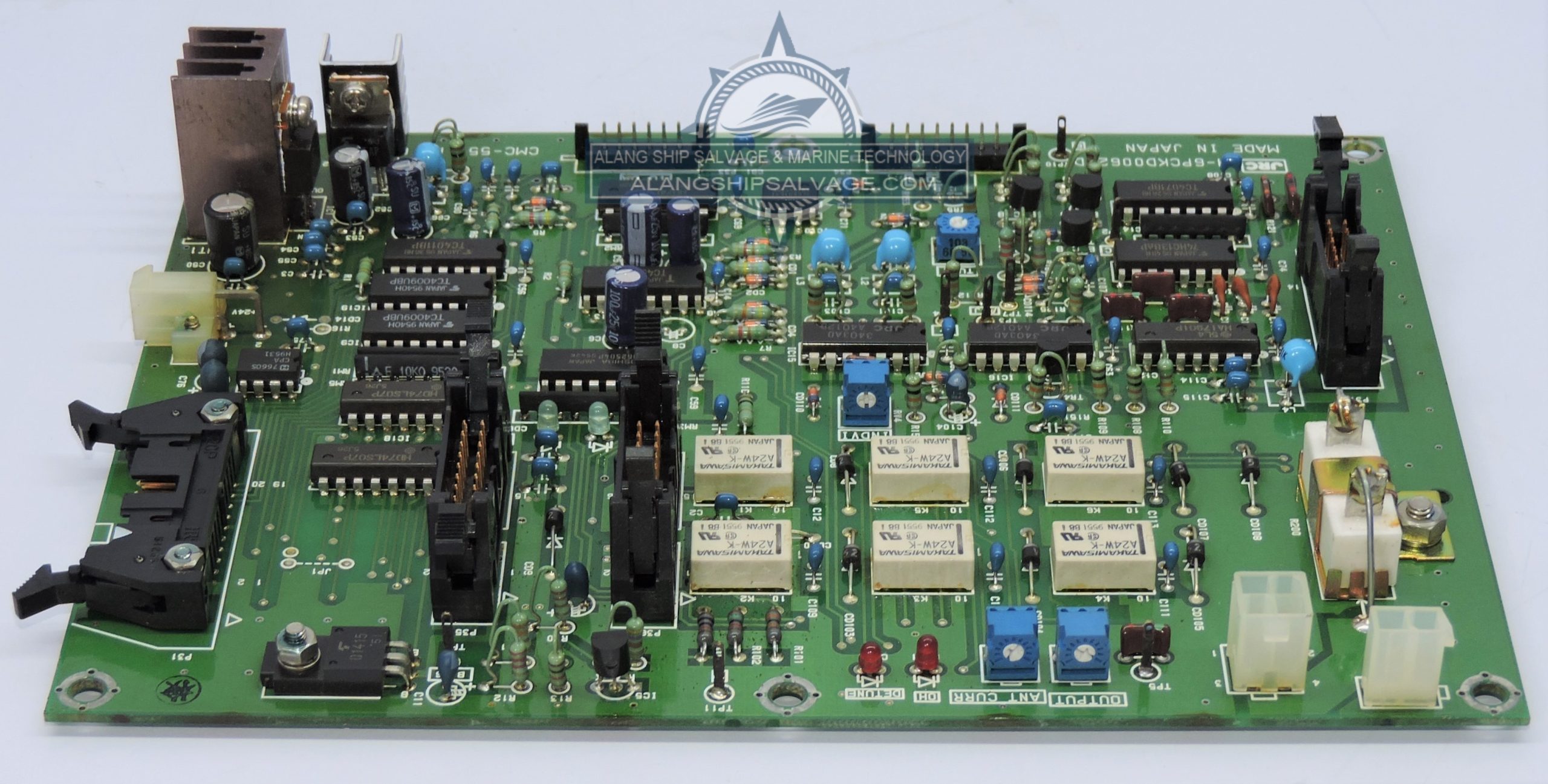

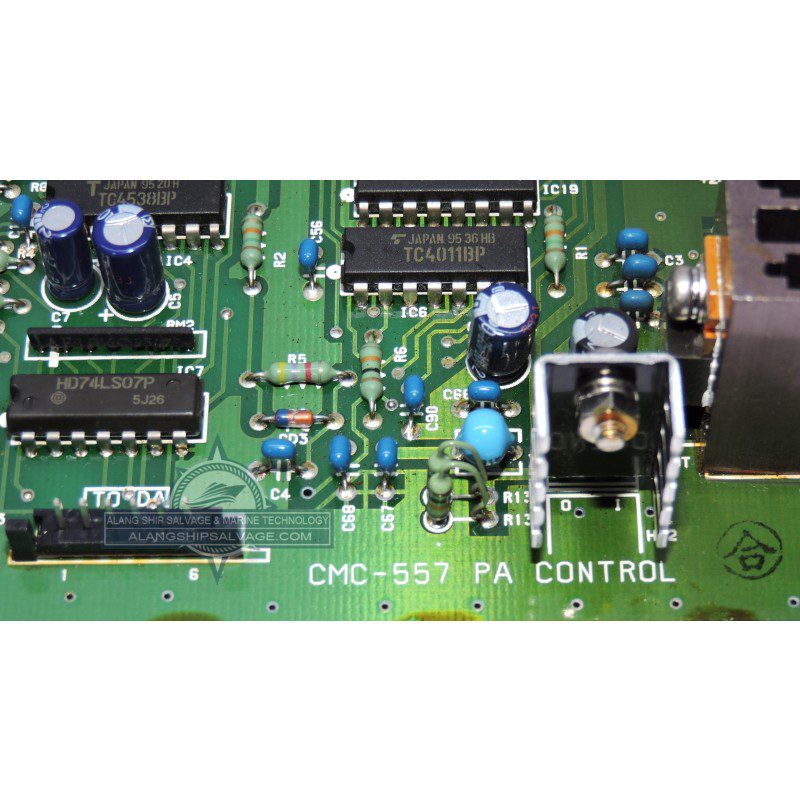

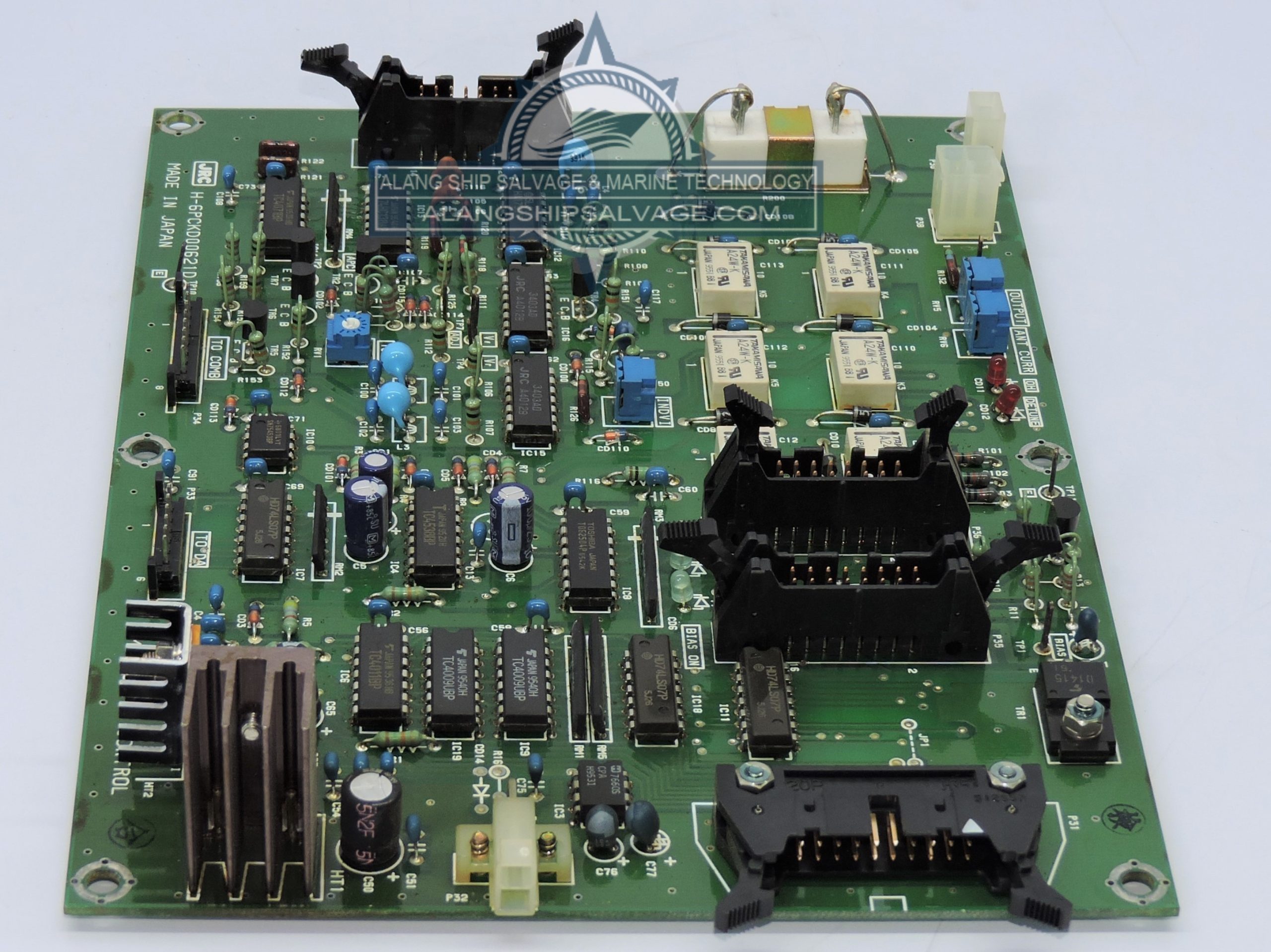

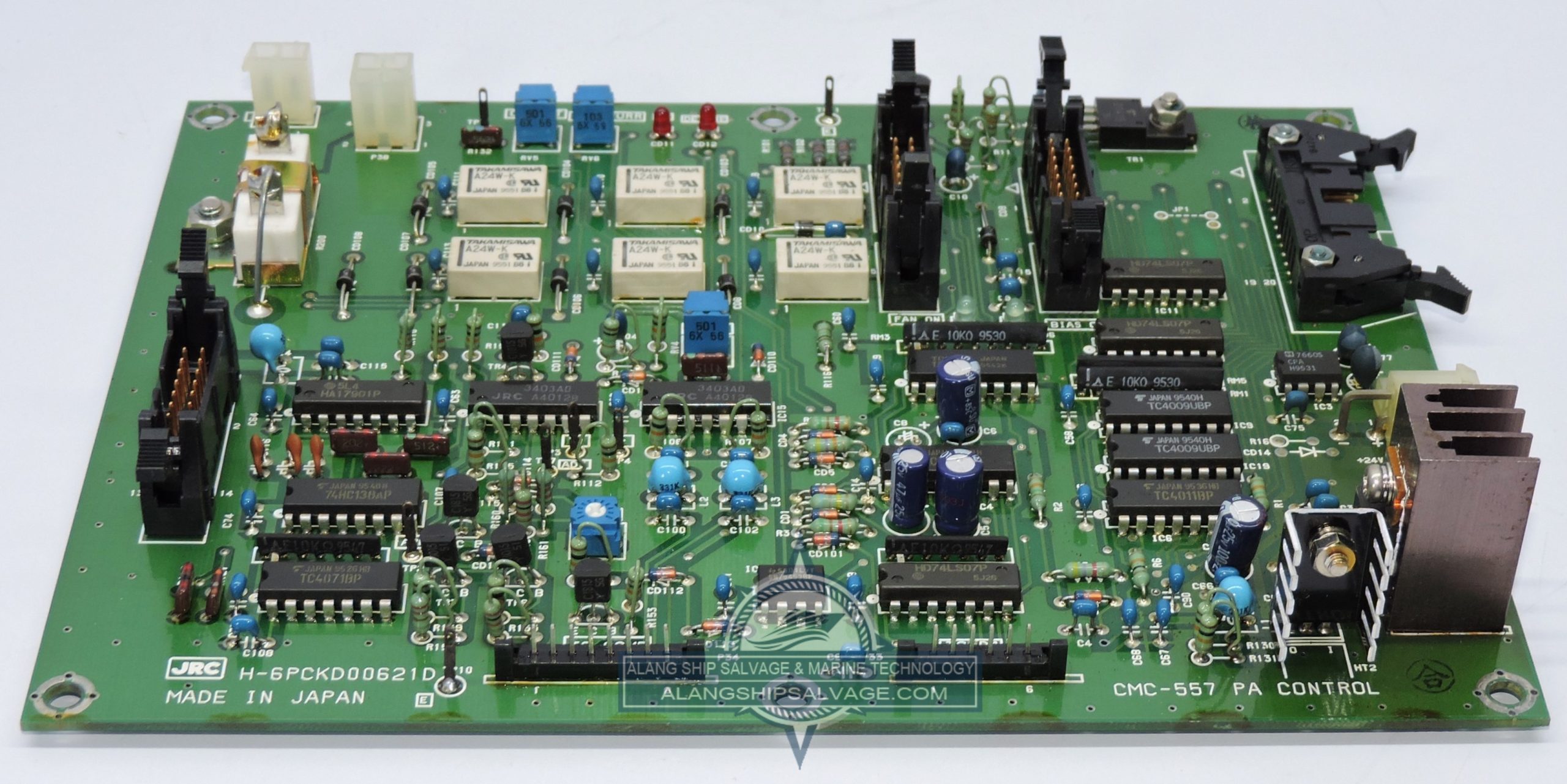

PRODUCT NAME : JRC 720 TRANSCIVER PA CANTROL PCB CMC-557
COMPANY NAME : JRC
MODEL NUMBER : CMC-557

PRODUCT DESCRIPTION : The CMC-557 is a PA (Power Amplifier) control PCB used in the JRC 720 transceiver. This board plays a crucial role in managing and controlling the power amplifier section of the transceiver, which is responsible for amplifying the RF signals to be transmitted.

The CMC-557 controls various aspects of the power amplifier’s operation, including biasing, power levels, and protection mechanisms. It ensures that the power amplifier operates within its specified parameters to provide optimal signal strength and quality while preventing damage from overdrive or overheating. Often, it includes circuitry for monitoring and controlling thermal conditions to protect the PA from overheating.
