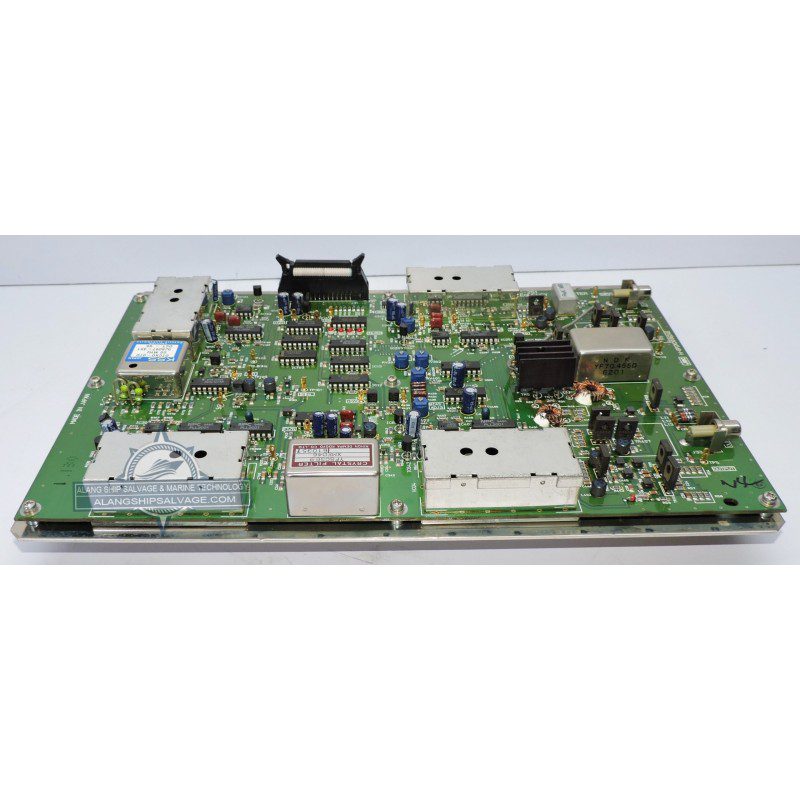

JRC 720 TRANSCIVER FREQUENCY CONVERTER PCB CNC-251

PRODUCT NAME : JRC 720 TRANSCIVER FREQUENCY CONVERTER PCB CNC-251
COMPANY NAME : JRC
MODEL NUMBER : PCB CNC-251

PRODUCT DESCRIPTION : The CNC-251 PCB in the JRC 720 transceiver functions as the frequency converter board. This PCB is essential for converting incoming and outgoing signals to different frequencies, which is crucial for the transceiver’s operation.

The CNC-251 PCB is responsible for mixing and converting frequencies. It converts signals from one frequency to another, enabling the transceiver to operate on different bands and modes. This involves generating intermediate frequencies (IF) that are easier to process and then converting them back to the desired frequencies for transmission or reception.
