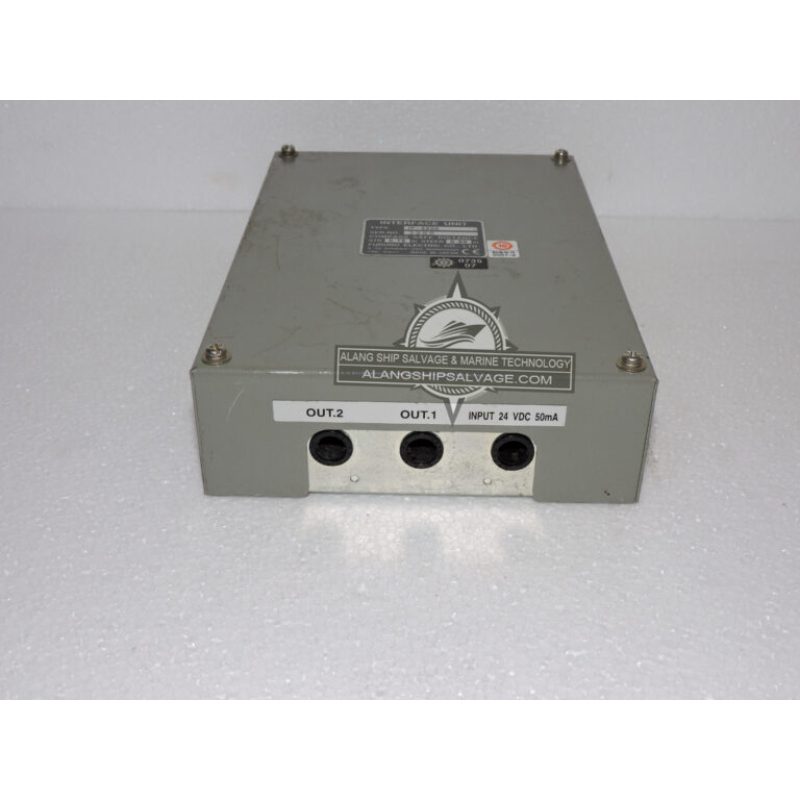

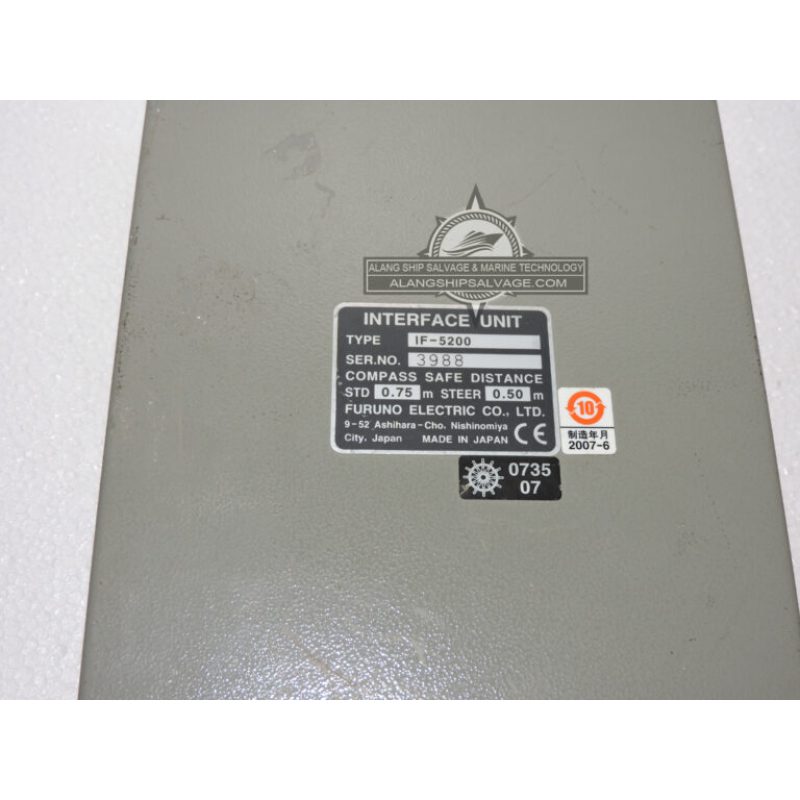

Product Name :- INTERFACE UNIT
Company Name :- FURUNO
Model Number :- IF-5200

Product Description :-
Power Supply : 24 VDC (21.6 to 31.2 Vdc), 40 mA
Mic input level :- 16 to –56 dBm, Input impedance: >10k ohms
Factory default :- 46 dBm, 600 ohms: 10dB ATT ON (Changeable among 10, 20,30 and 40 dB with DS1 and DS3.)
Speaker input level :- 32 to 200 ohms, 2 mW, input impedance: 10k ohms
Factory default:2 mW, 200 ohms: 10dB ATT OFF (Changeable between 0 and
10 dB with DS2 and DS4.)
PTT Switch signal :- TTL level
Output:0 dBm±10dB, 600 ohms, balanced
